Plant Engineering – Tanks and Biogas Plants

Satisfied customers are our best recommendation! Here you will find a selection of our projects, which reflect the comprehensive range of services of MF Engineering.

Previous Page
Next Page

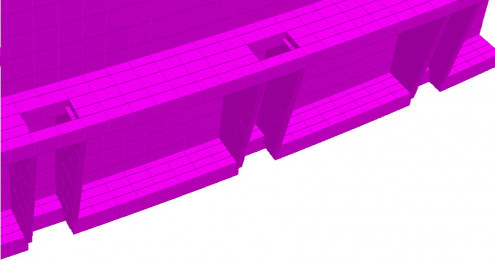

Behälterbau – Petrochemische Anlage in Ras Tanura

Petrochemical Plant in Ras Tanura

New development of seven containments in Saudi Arabia (diameter 8.5-35m, height 6.5-52.5m)

  • Babcock Noell GmbH
    • Participation with structural calculation of the containments acc. to API 620 and the nozzles acc. to ASME Boiler & Pressure Vessel Code, Section VIII

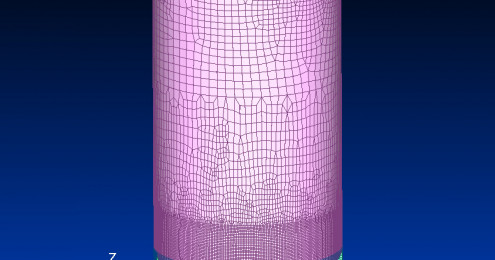

    Behälterbau – Wassertank in Hückelhoven

    Water Tank in Hückelhoven

    New development of a water tank in Hückelhoven (diameter 4,25 m, height 9,4 m)

  • Steinecker GmbH
    • Structural calculation of the watertank under wind, snow, and seismic loads as well as lifting acc. to AD2000 Merkblätter and DIN EN 1993-1 as well as analysis of buckling acc. to DIN EN 1993-1-6

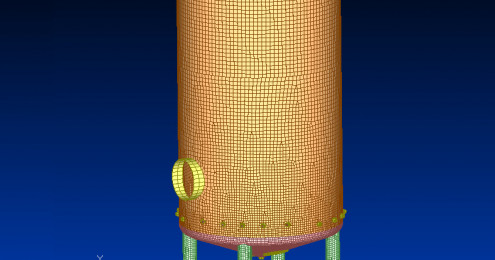

    Behälterbau – Bioreaktor in Helsinki, Finnland

    Bio Reactor in Helsinki, Finland

    New development of a bio reactor

  • GEA Brewery Systems GmbH
    • Structural calculation and proof of the vessel on legs acc. to AD2000 Merkblätter, verification oft he deformation of the flat head being loaded by 450 kg welded-on components

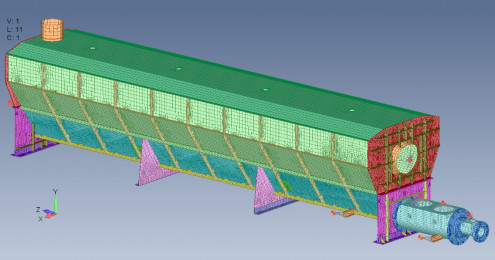

    Behälterbau – Auffangbehälter in Sendai, Japan

    Collection tank in Sendai, Japan

    New development of a collection tank for a Brewery

  • Ponndorf Anlagenbau GmbH
    • Structural calculation, optimisation and proof of the vessel on saddles under seismic load acc. to AIJ (Article 88, Building Code Enforcement Ordinance) and EN 1993-1

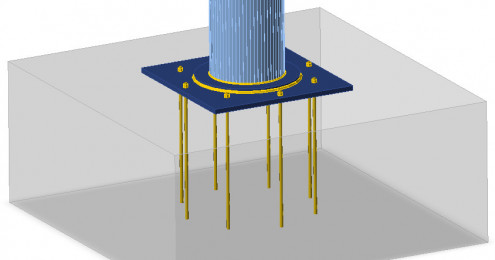

    Behälterbau – Verankerungen für Tanks in Kuba

    Anchorages for Tanks in Cuba

    New development of big tanks (seven types), a silo and a staircase tower for a brewery in Zona Mariel, Cuba

  • GEA Brewery Systems GmbH
    • Structural calculation and proof of subsequent anchorages for tanks and a staircase tower under wind load acc. to NC 46:2017

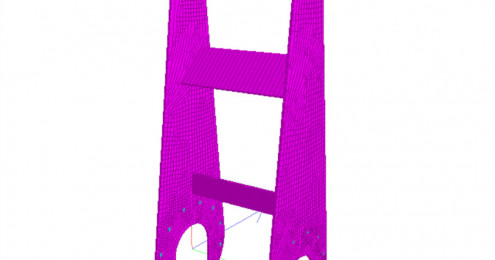

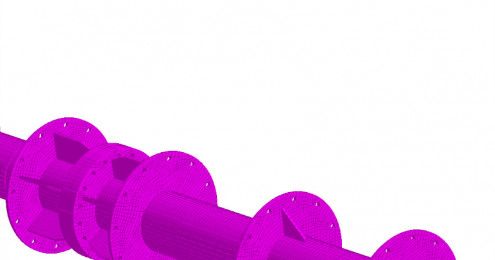

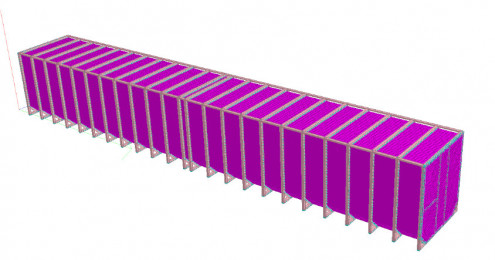

    Behälterbau – Biogas Fermentertank

    Biogas Fermenter Tank

    New development of a compact fermenter for biogas production. Measurements approx. 3.5m x 3.2m x 22.5m

  • Schmack Biogas GmbH
    • Structural and seismic calculation of a fermenter incl. agitator shaft acc. to EC3; consideration of very soft support and uneven assembly area

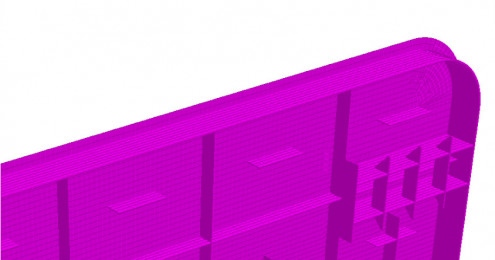

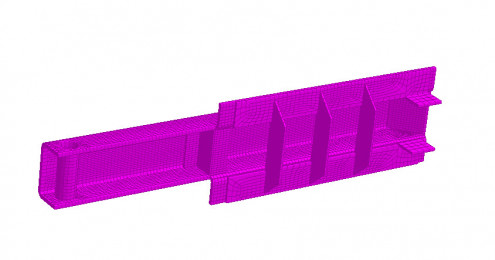

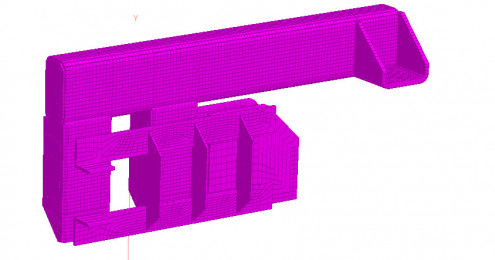

    Behälterbau – Biogas Fermentertor

    Biogas Fermenter Gate

    New development of a fermenter gate for gas tight sealing of a concrete fermenter under overpressure. Measurements approx. 4.5m x 4.5m

  • Schmack Biogas GmbH
    • Finite element analysis (FEA) of leaf, frame, locking and hinges acc. to EC3
    Previous Page
    Next Page
    All references in one PDF
