Plant Engineering – Pressure Vessels
Satisfied customers are our best recommendation! Here you will find a selection of our projects, which reflect the comprehensive range of services of MF Engineering.

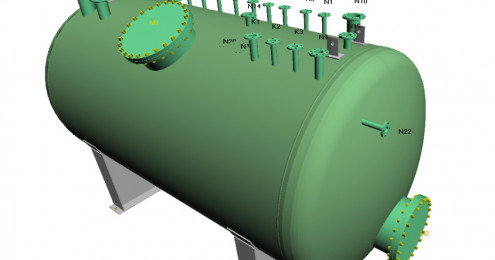

Pharma Vessels in Solothurn (Switzerland)
New development of six pharma vessels
Structural calculation and proof of vessels on legs, saddles, skirts and brackets acc. to AD2000 Merkblätter (local checks acc. to DIN EN 13445 and PD 5500) under consideration of earthquake acc. to SIA 261

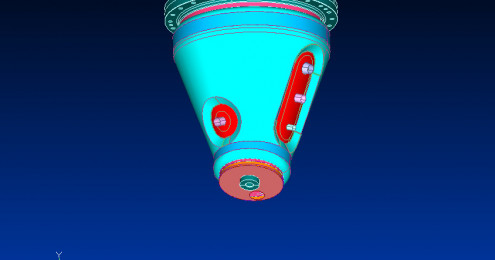

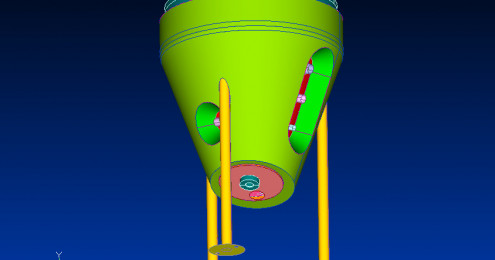

Solid Collection Vessel
New development of a solid collection vessel
Structural calculation and proof of the vessel with jacket and flange acc. to AD2000 Merkblatt S4

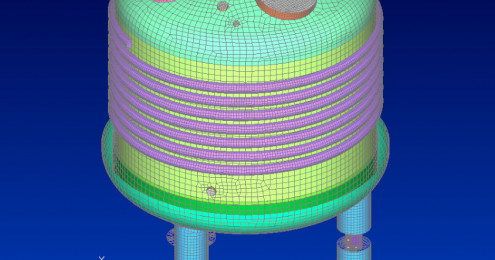

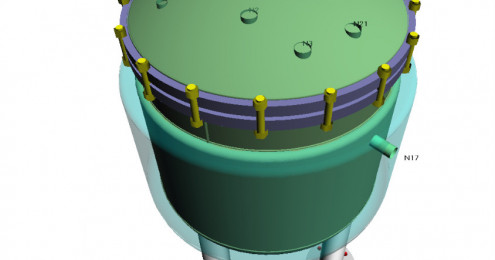

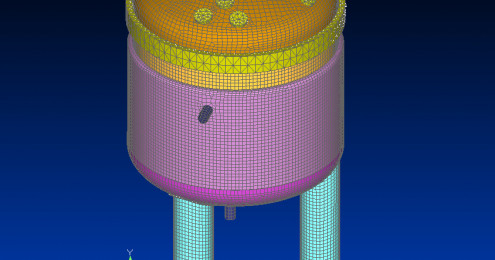

Pharma Vessels in Turkey
New development of eight pharma vessels
Structural calculation and proof of the vessels on legs acc. to AD2000 Merkblätter (analytic and FEA) under consideration of mixer loading

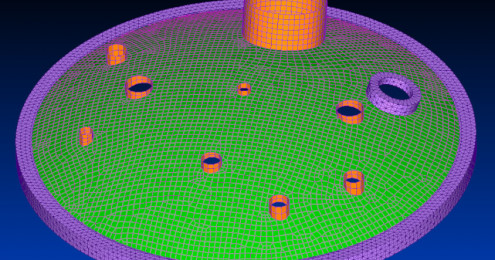

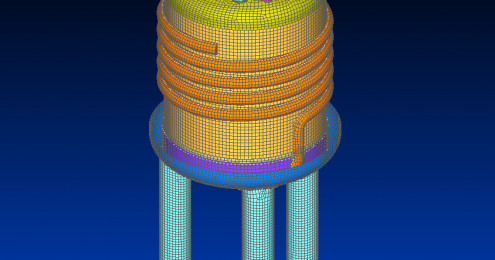

Pharma Vessels in Turkey
New development of twelve pharma vessels
Structural calculation and proof of the vessels with full or half-pipe jackets on legs acc. to AD2000 Merkblätter (analytical and FEA)

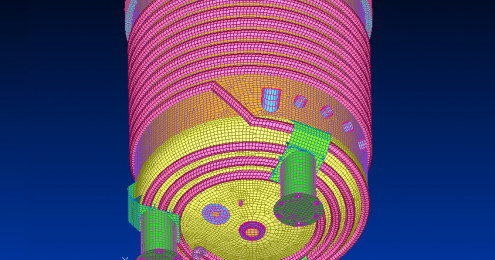

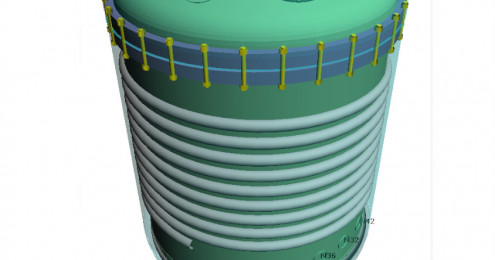

Pharma Vessels Marburg
New development of nine pharma vessels
Structural calculation and proof of the vessels on legs and with half-pipe jacket acc. to AD2000 Merkblätter (analytic and FEA) under consideration of mixer loading

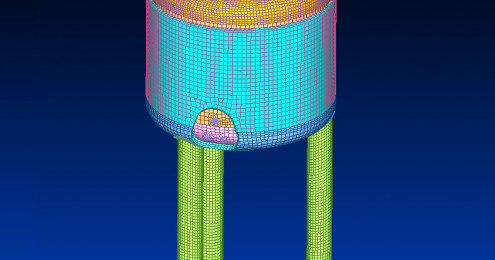

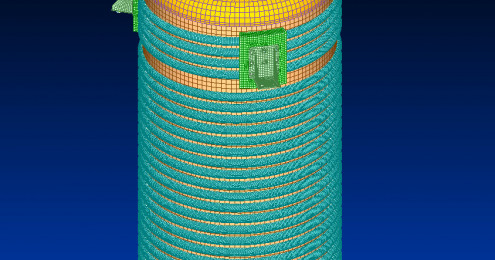

Pharma Vessels Bern
New development of eleven pharma vessels
Structural calculation and proof of the vessels on legs or brackets and with half-pipe or full jacket acc. to AD2000 Merkblätter (analytic and FEA) under consideration of mixer loading and earthquake acc. to SIA 261

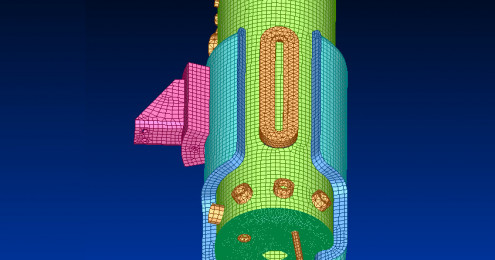

Pharma Vessels in China
New development of three pharma vessels
Structural calculation and proof of the vessels on partially non-symmetric brackets and with machined flat head acc. to AD2000 Merkblätter under consideration of earthquake acc. to GB50011
Preparation Vessel in Turkey
Structural calculation and proof of the vessel on legs and with half-pipe jacket using a novel support structure acc. to AD2000 Merkblätter (analytic and FEA) under consideration of mixer loading and earthquake acc. to TBDY 2018

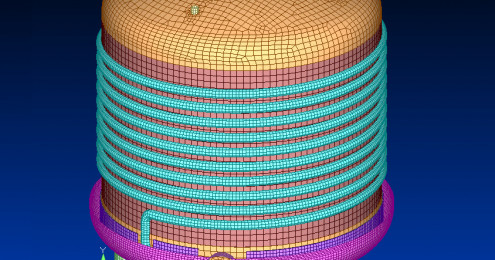

Preparation Vessel in Oslo
New development of a Preparation Vessel
Structural calculation and proof of the vessel on legs and with half-pipe jacket and an optimised support structure acc. to AD2000 Merkblätter under consideration of earthquake acc. to DIN EN 1998

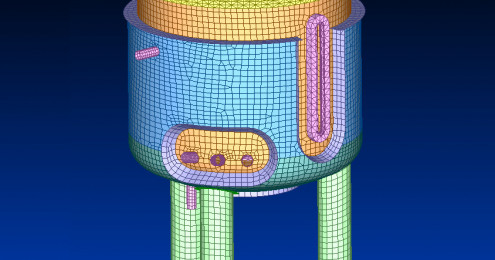

Intermediate Tank in Biberach
New development of an Intermediate Tank
Structural calculation and proof of the vessel on legs and with jacket and long sight glass acc. to AD2000 Merkblätter

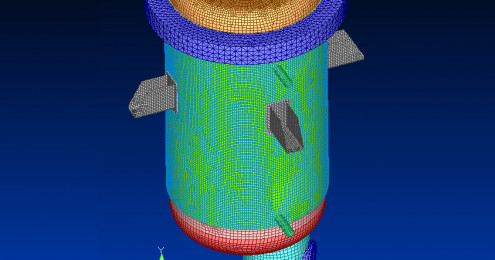

Pharma Vessel in Williston (USA)
New development of a crystallizer
Structural calculation and proof of the vessel on brackets and with baffles anchored in the top head acc. to ASME 2017 (FEA) under consideration of mixer loading

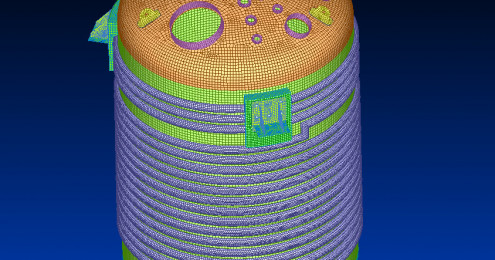

Pharma Vessel in Kankakee (USA)
New development of two pharma vessels
Structural calculation and proof of the vessels on brackets and with half-pipe jacket acc. to ASME 2017 (FEA) under consideration of mixer loading
and earthquake acc. to ASCE 7-10 as well as fatigue acc. to AD2000 Merkblatt S2

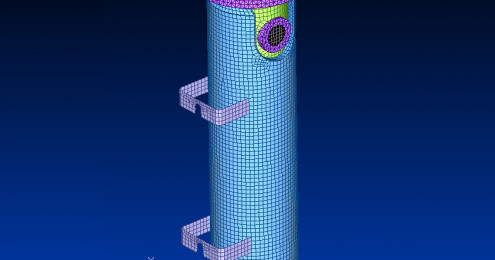

Pharma Vessel in India
New development of three pharma vessels
Structural calculation and proof of partially non-symmetric on brackets supported vessels acc. to AD2000 Merkblätter under consideration of earthquake acc. to IS 1893

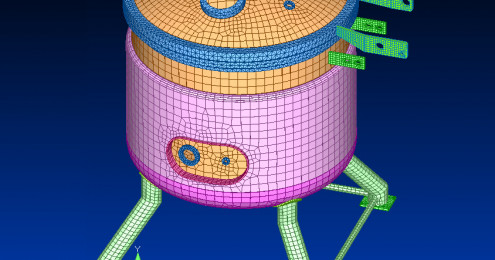

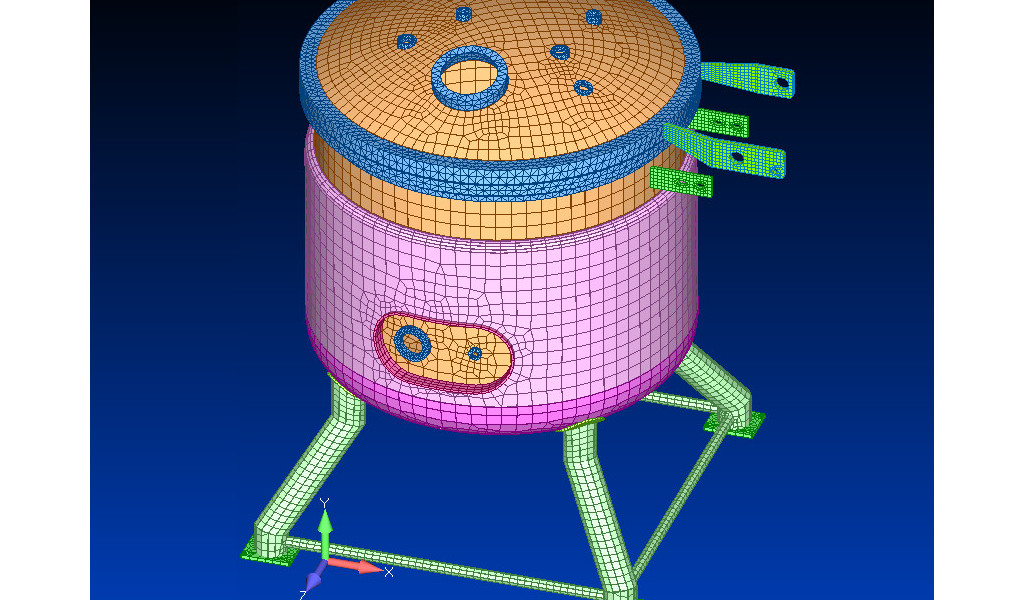

Mobile Pharma Vessels
New development of four mobile pharma vessels
Structural calculation and proof of the mobile vessels acc. to AD2000 Merkblätter under consideration of mixers

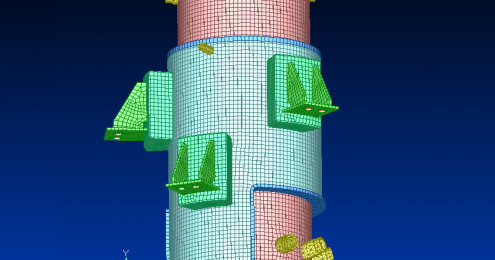

Pharma Vessel in Janesville, WI, USA
New development of two fermenters and two bio reactors on brackets or legs
Structural calculation and proof (stress and fatigue) oft he vessels acc. to ASME BPVC 2023 and AD2000 Merkblätter under consideration of earthquake acc. to ASCE 7 and agitator loads

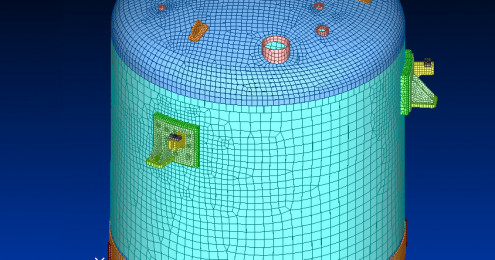

Pharma Vessel in Denmark
New development of four pharma vessels for Fujifilm
Structural calculation and proof of the vessels on brackets with calibration fixtures acc. to AD2000 Merkblätter under consideration of earthquake acc. to EN 1998-1 (NA) as well as fatigue

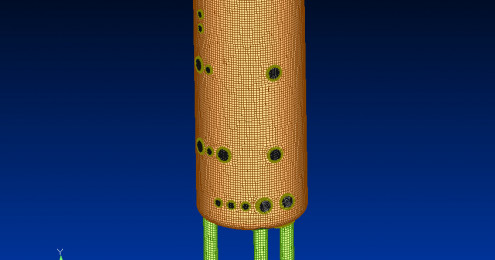

Pressure Vessel in Hildesheim
New development of a Bioreactor
Structural calculation and proof of the vessel on legs acc. to AD2000 Merkblättern incl. proof of fatigue for pressure changes

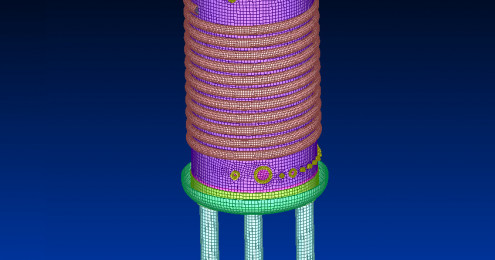

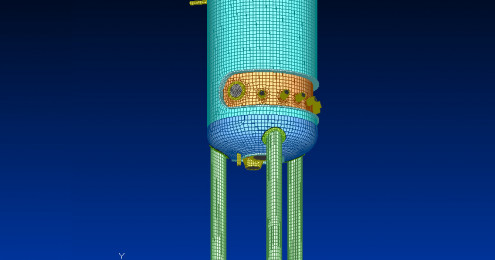

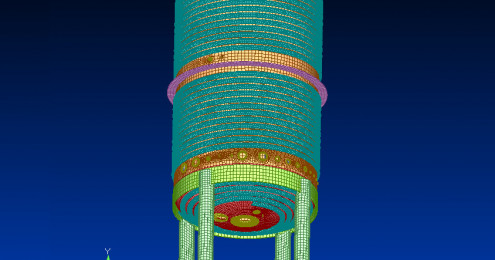

Pressure Vessels in Wilson, NC, USA
New development of three Bioreactors
Structural calculation and proof of the vessels on legs acc. to ASME Sec. VIII Div. 1 / AD2000 Merkblätter incl. proof of fatigue for agitator load and pressure changes, earthquake acc. to ASCE 7

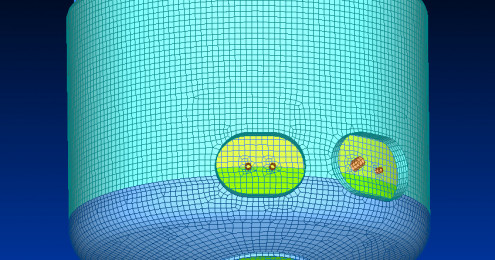

Alteration of a Vessel in Australia
Addition of two nozzles incl. opening in the jacket
Structural calculation and proof of the vessel acc. to AD2000 Merkblätter (FEA)

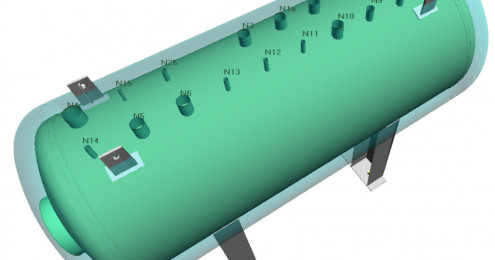

Vessels for Brewery in Montreal, Canada
New development of two condensate vessels
Structural calculation and proof of the vessels on saddles acc. to AD2000 Merkblätter (local checks acc. to DIN EN 13445) under consideration of earthquake acc. to NBCC 2010

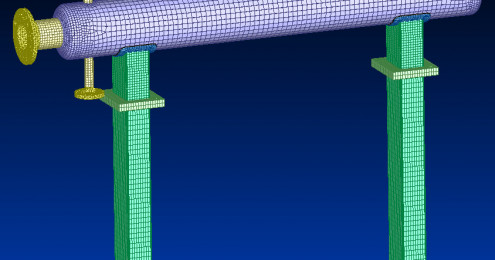

Steam Header in Thái Bình, Vietnam
New development of a steam header
Structural calculation and proof of the vessels on saddles acc. to AD2000 Merkblätter under consideration of earthquake acc. to TCVN 9386

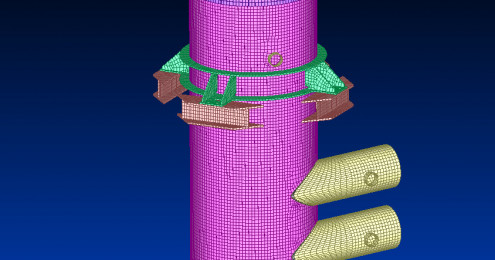

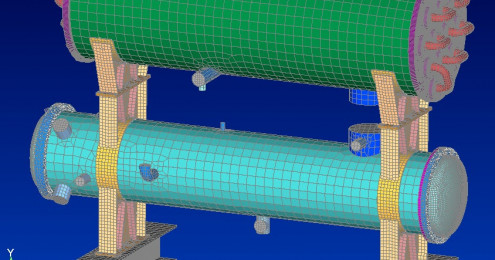

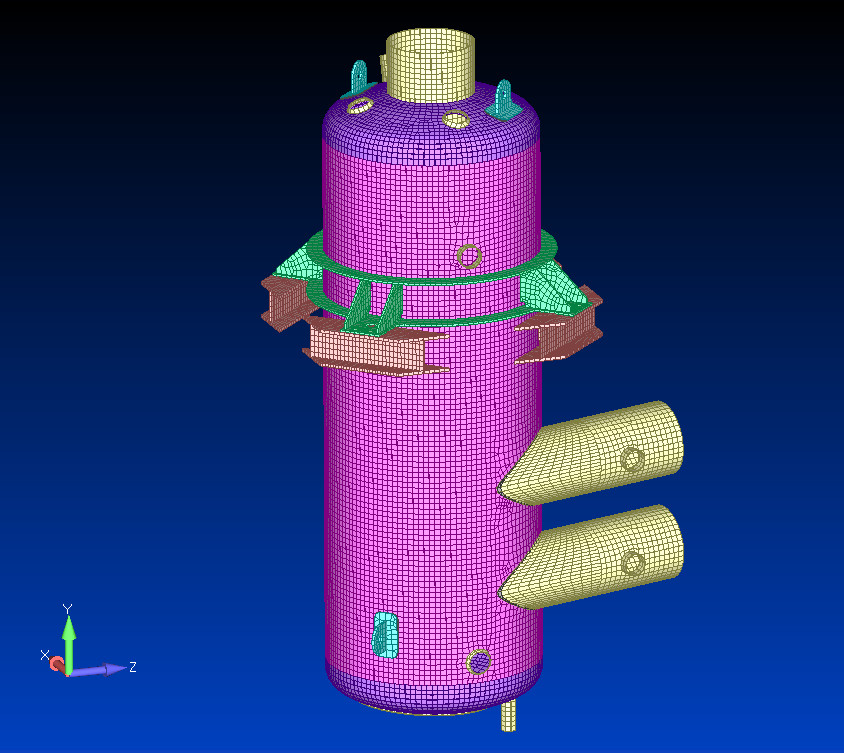

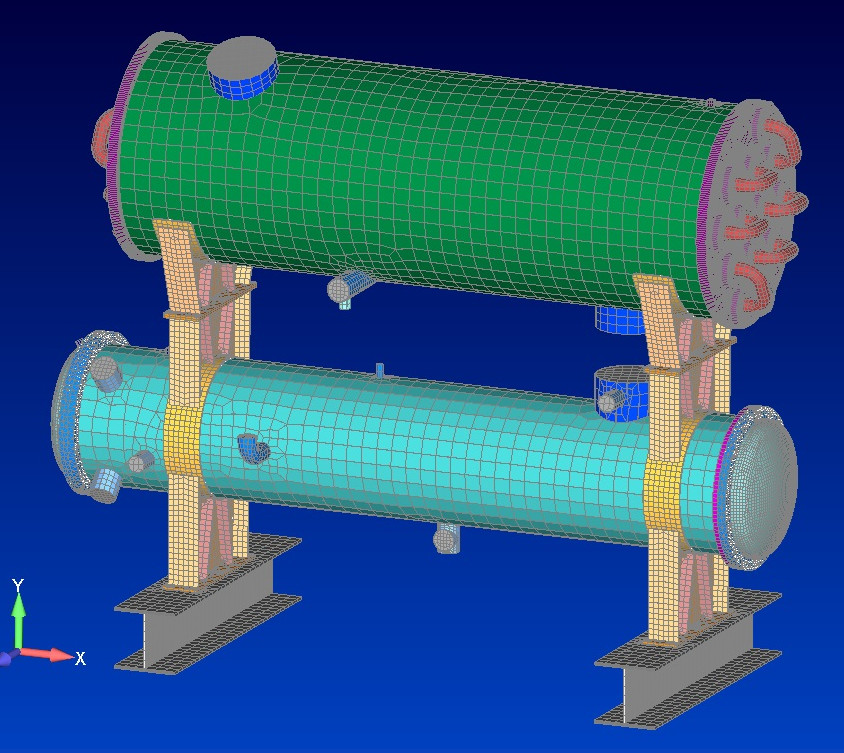

Brewery in Wasserburg
New development of six pressure vessels / heat exchangers
Structural calculation and proof of the vessels incl. unusual tube sheets (Varitube) on brackets and saddles acc. to AD2000 Merkblätter

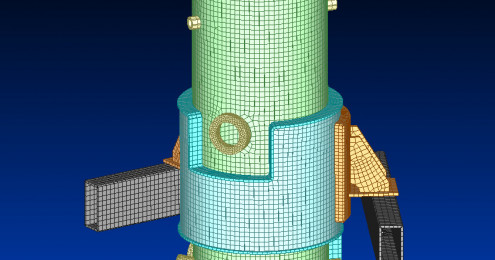

Fermenter for Breweries
Design of standard vessels for three different fermenter sizes
Structural calculation and proof of the vessels with jacket and agitator on brackets or legs under earthquake load acc. to EN 1998-1 and AD2000 Merkblätter

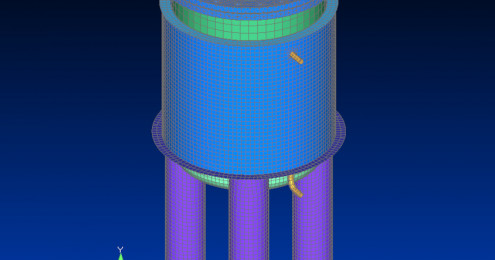

Filling Vessel in Oslo, Norway
New development of a filling vessel
Structural calculation and proof of the vessel with jacket and agitator on legs under earthquake load acc. to NS EN 1998-1 and AD2000 Merkblätter

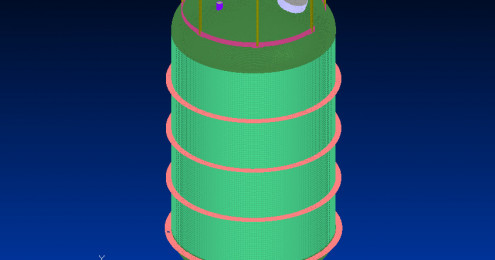

Sterile Tank in Jeddah, Saudi-Arabia
New development of a sterile tank
Structural calculation and proof of the vessel with an accessible dished head, pressureless jacket and agitator on legs acc. to AD2000 Merkblätter

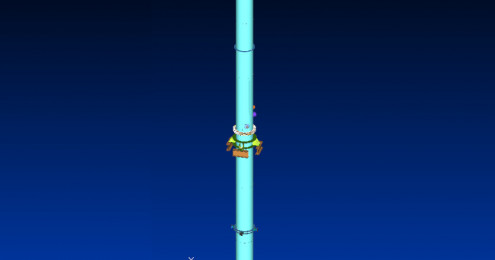

Pressure Vessels in Darmstadt
New development of two pressure vessels
Structural calculation and proof of the vessels on brackets with additional horizontal supports acc. to AD2000 Merkblätter under consideration of wind/snow acc. to DIN EN 1991, earthquake acc. to DIN EN 1998 and nozzle loads

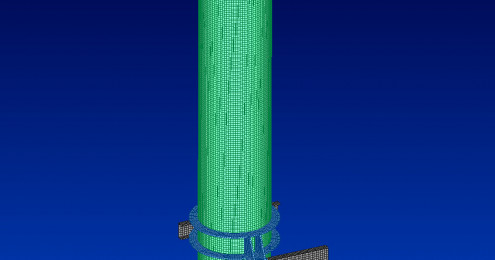

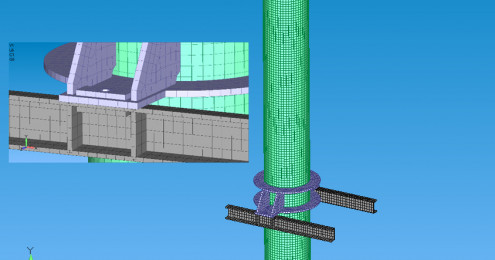

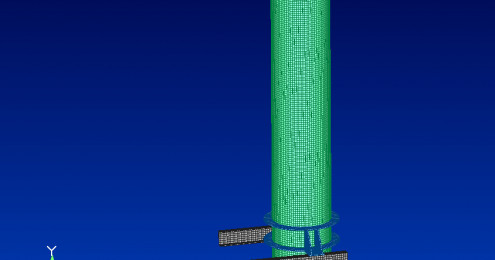

CO2-Dryer/Purifier in USA
New development of Dryer DN800 and Purifier DN700 in Golden, Colorado, USA
Structural calculation and proof of the vessels acc. to ASME Sec. VIII Div. 1 under earthquake load acc. to ASCE 7-22
CO2-Dryer/Purifier in USA
New development of Dryer and Purifier DN350 in Fort Collins, Colorado, USA
Structural calculation and proof of the vessels acc. to ASME Sec. VIII Div. 1 under earthquake and wind load acc. to ASCE 7-22

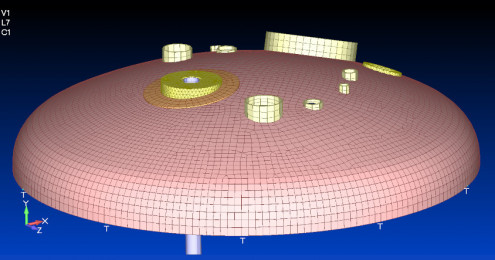

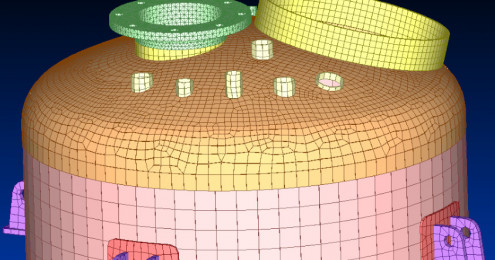

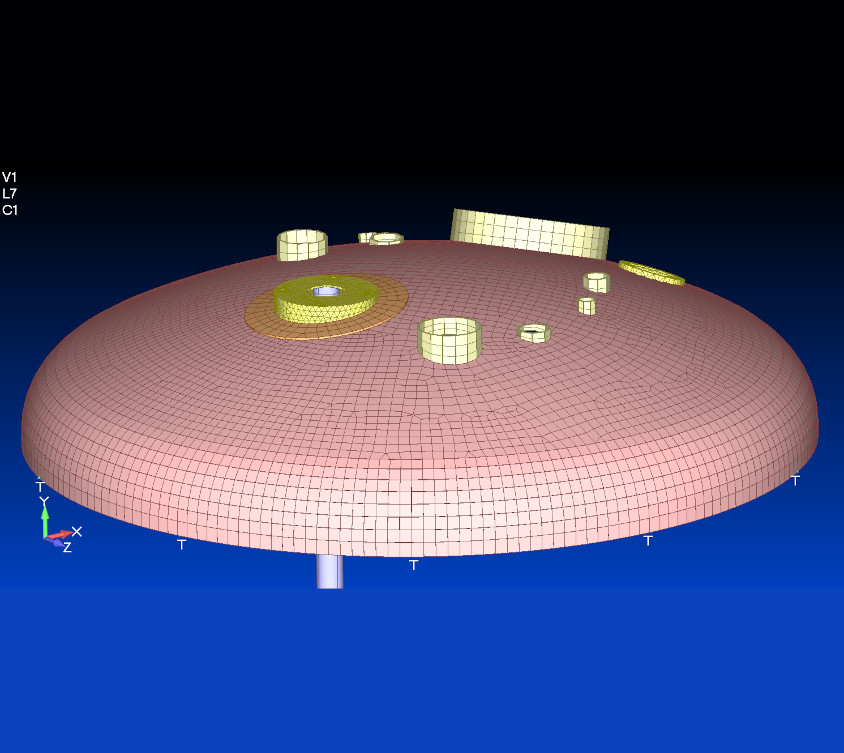

Vessel with Agitator, Germany
High resonant buffeting during normal operation of the chosen agitator
Frequency analysis of the existing structure as well as of several solution approaches to reduce the arising resonant buffeting

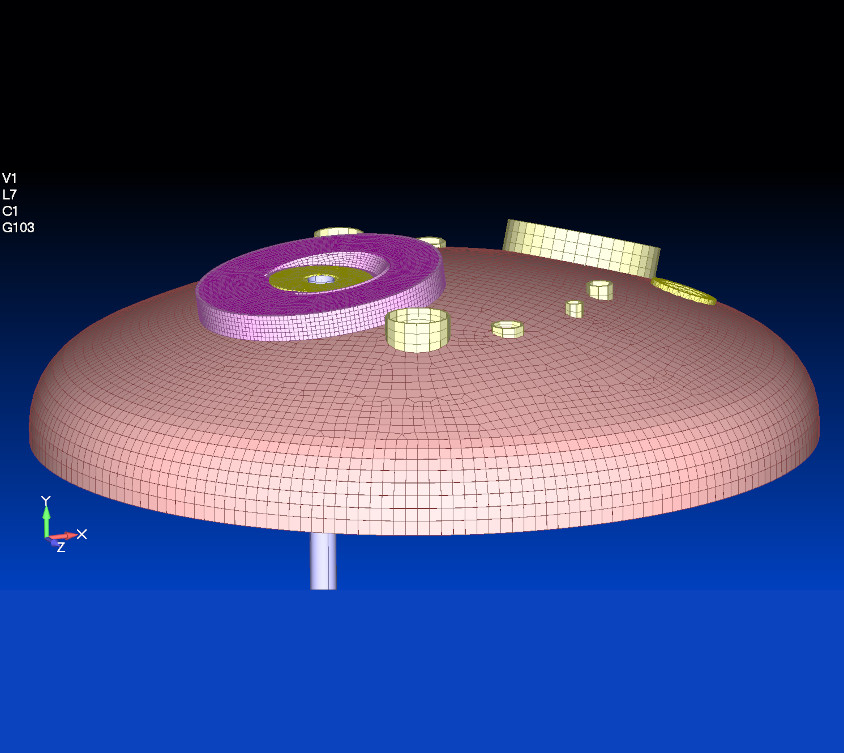

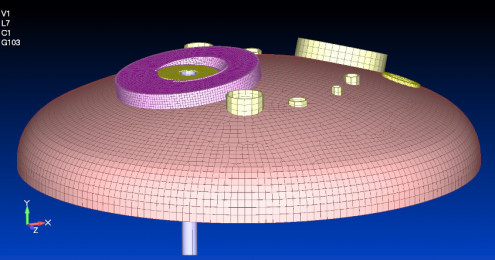

Vessel with Agitator
High oscillation amplitudes during operation oft he chosen agitator
Analysis of the existing vessel in regards to the requirements of the manufacturer of the agitator as well as reinforcement of the dished head to reduce the arising oscillation amplitudes
